ROBOX™ Navigation System
Temi’s human-robot interaction and autonomous navigation
Specs
Robox

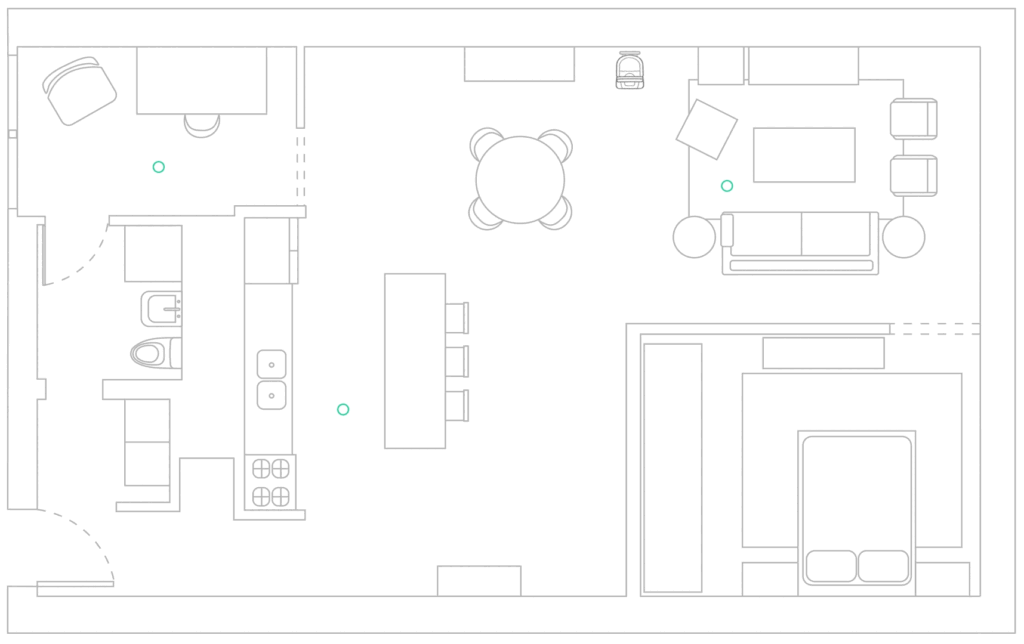

2D Mapping
3D Localization
Navigation
User detection and tracking
Obstacle avoidance
Path planning
3D Localization
Navigation
User detection and tracking
Obstacle avoidance
Path planning
CPU
ARM Hexa Core
LINUX OS
LINUX OS
Sensors
360 degrees LIDAR
2 depth cameras
RGB camera
IMU sensor
6 Time of Flight linear sensors
2 depth cameras
RGB camera
IMU sensor
6 Time of Flight linear sensors
Fully-Autonomous Navigation with accuracy of 5cm/2Inches
Navigation and Human Follow mode without the need of any external device.
Real-time sensor fusion and data analysis ensures safe
Navigation and Human Follow mode without the need of any external device.
Real-time sensor fusion and data analysis ensures safe
TEMI OS
Super intuitive operating system that comes, hears, speaks, sees and understands you, and is always learning how to serve you better
Temi center – Online management system for centralized control and customization
https://center.robotemi.com/
Voice interaction
temi hears, identifies, understands and responds to the user’s voice using Auto Speech Recognition (ASR) and far field voice technology, natural language processing (NLP), speech-to-text and text-to-speech (TTS) engines
User Interface
temi’s designed display enhances your experience with visuals that invite you to speak, hear and see what you want – creating the ultimate human-robot interaction
AI
temi integrates the best AI engines together to connect you to your favorite services. It’s navigation system self-learns it’s surroundings and understands where temi is, what it is seeing and where it is going.
Facial recognition supported
Open to 3rd party apps
Full SDK Available for 3rd party apps development and deployment
Open to 3rd party apps
Full SDK Available for 3rd party apps development and deployment
Security
Top security measures and protocols.
Protected by Firedome IOT security.
Built in Apps
Built in and and Temi Designated App Store, with Apps available from global developers
AI Assistant
Be home
Video calls
Personal DJ
Developers
Personal photographer
Personal Caddy
Home hub
Entertainment
Connectivity
wifi
WIFI 5 (802.11 a/b/g/n/ac with both 2.4G/5G)
Bluetooth
V5.1 BLE compatible Master and slave modes
USB
1 USB 3.0 port TYPE-C, 1 USB 2.0 port TYPE-A
Supports 4G USB dongle
Supports external USB camera
Supports common USB devices
Supports 4G USB dongle
Supports external USB camera
Supports common USB devices
Cellular (optional)
Cellular network SIM slot 4G/5G support
Dimensions
Size
(ft.) 3.2H x 1.1W x 1.5D
(cm.) 100H x 35W x 45D
(cm.) 100H x 35W x 45D
Weight
26 lbs / 12 kg

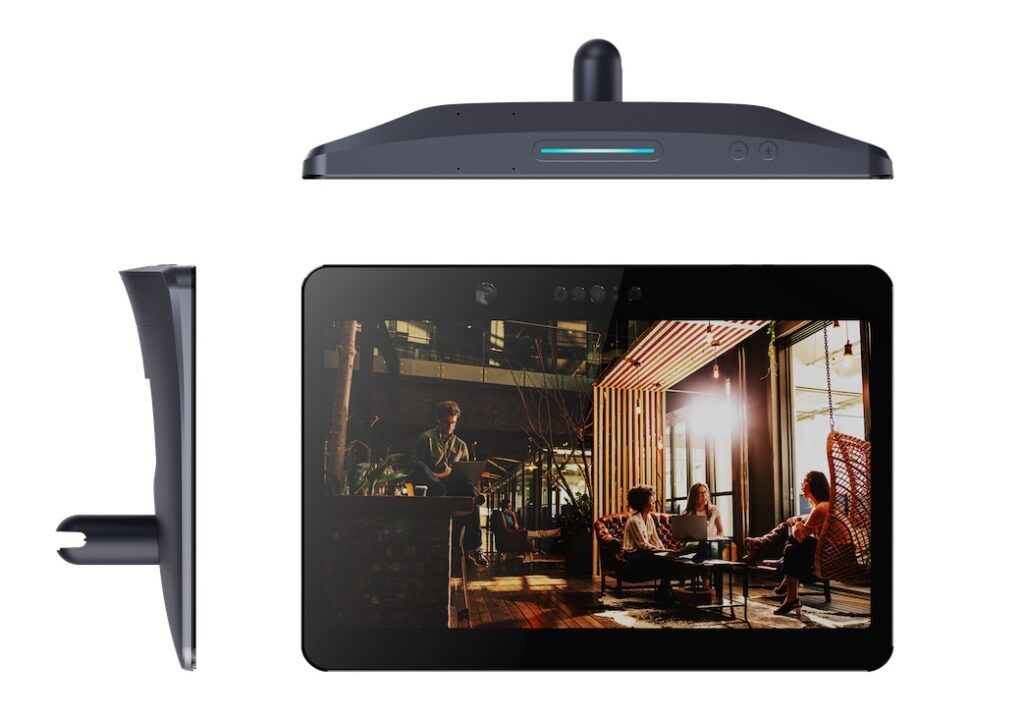

DISPLAY
13.3” (H293.76 / V 165.24)
Capacitive multi-touch for intuitive interface. (1920X1080) IPS LCD 16M colors Touch Capacity Display Pixel density: 224 (ppi)
340 cd/m2 max brightness (typical)
Fingerprint-resistant coating
Fingerprint-resistant coating

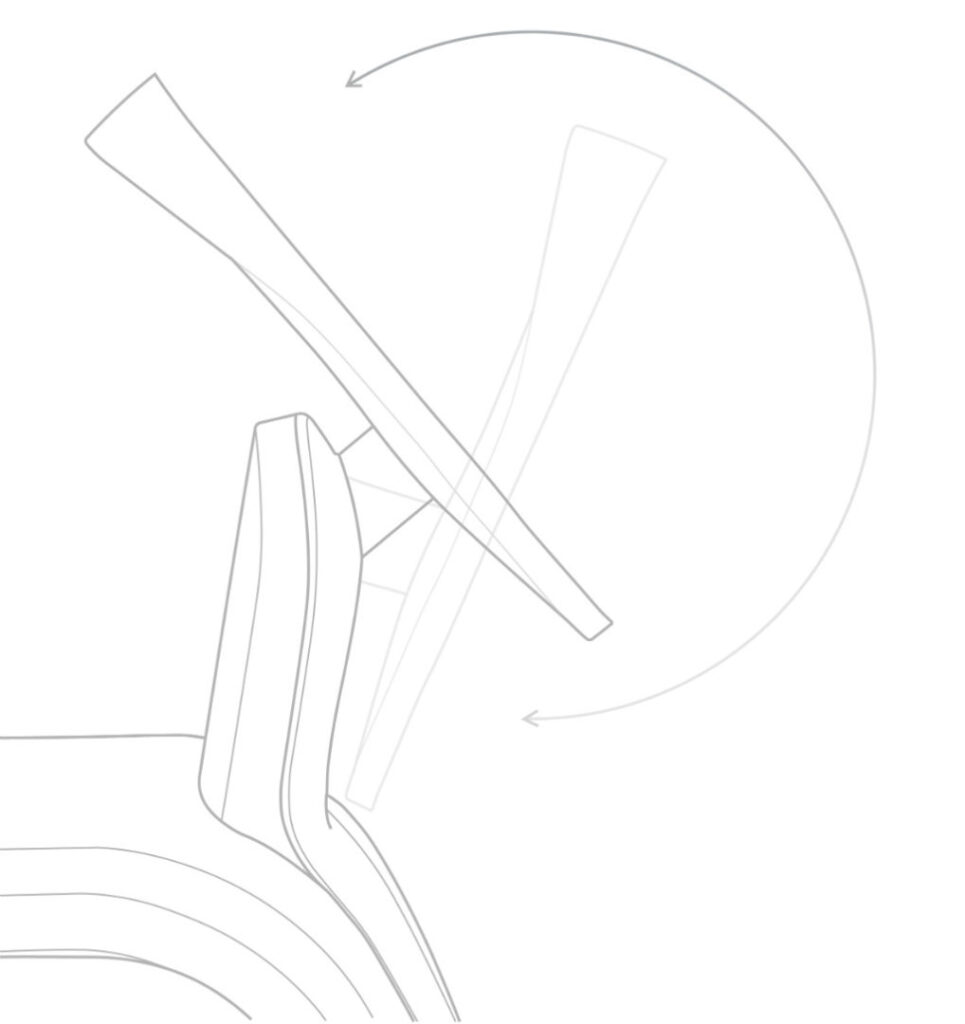

Screen Tilt
Autonomous face tracking screen tilt
Brushless DC motor with planetary gear for high accuracy and quiet operation
Motion range – 15°~+55°
Brushless DC motor with planetary gear for high accuracy and quiet operation
Motion range – 15°~+55°
Mic
Microphone Array
4 Omni-directional digital mics
Real-time localization
Beam forming
Acoustic echo cancellation
Environment noise reduction
Real-time localization
Beam forming
Acoustic echo cancellation
Environment noise reduction
Audio
Microphone Array
20W Audio
High fidelity equalizer
One sub-woofer
Two midrange speakers
Two tweeters
Passive radiators
Acoustically transparent fabric
High fidelity equalizer
One sub-woofer
Two midrange speakers
Two tweeters
Passive radiators
Acoustically transparent fabric
Cameras
13 MP high resolution camera
Autofocus
1080p@30FPS
FOV 120 Degrees
5-Element lens
Hybrid IR filter
Digital Zoom
1080p@30FPS
FOV 120 Degrees
5-Element lens
Hybrid IR filter
Digital Zoom
TOF Depth Camera
30 FPS
Up to 5 meters
90° FOV
Up to 5 meters
90° FOV
CPU
CPU 1
Dual-core Cortex-A72 1.8GHz
Quad-core Cortex-A53 1.4GHz
Quad-core Cortex-A53 1.4GHz
Operation System
Human interaction computer based on Android 11 architecture with proprietary launcher and User Interface
CPU 2
Dual-core Cortex-A72 1.8GHz
Quad-core Cortex-A53 1.4GHz
Quad-core Cortex-A53 1.4GHz
Main navigation computer based on ARM architecture, enabling high performance with minimal power consumption

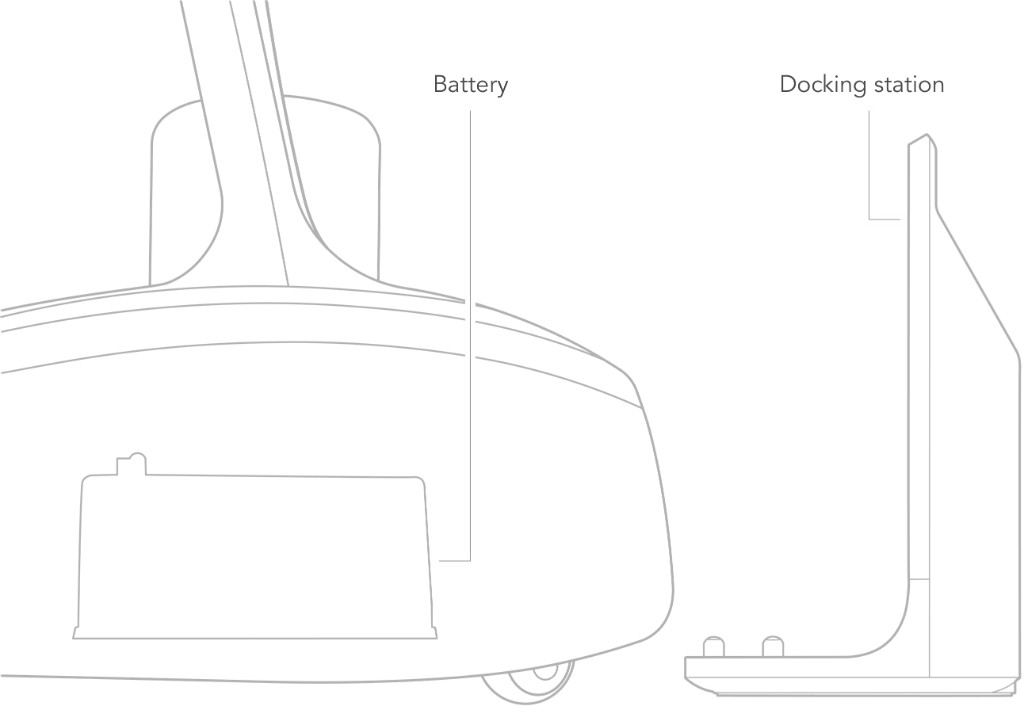

Power
Up to 8 Hours of operation per charge
Autonomous charging- 220V/110V
High performance docking station
Lithium-Ion cells
Autonomous charging- 220V/110V
High performance docking station
Lithium-Ion cells
Mobility

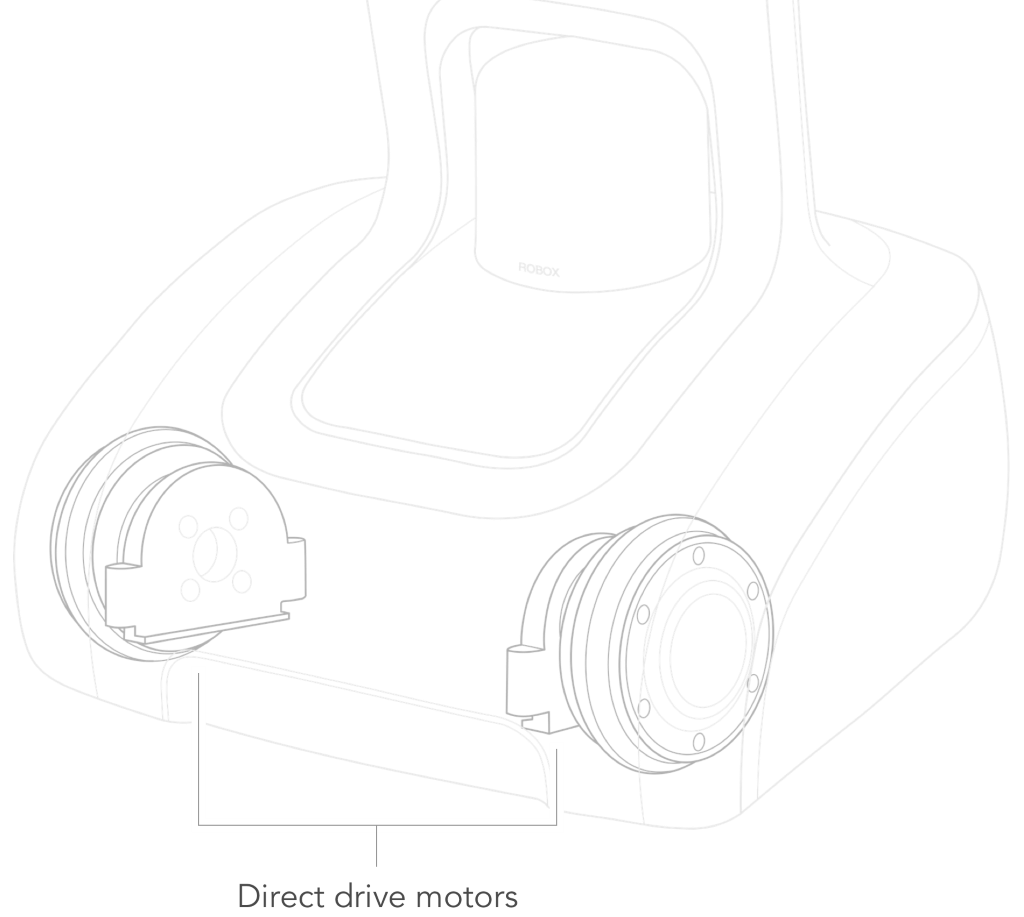

Two independent 50 W direct drive Brushless DC motors
High resolution magnetic encoders that produce a smooth, accurate ride
High resolution magnetic encoders that produce a smooth, accurate ride
Maneuverability
Zero turn radius
Speed
Up to 1 meter per second
Custom tires for optimal grip, stability and vibrations management
Tray
Ergonomic Tray
temi V2 or V2 upgraded to V3:
The tray contains a standard wireless charger for your mobile phone
temi V3:
The tray contains a 12V DC power jack and 4 screw holes for add-on attachment.
The tray contains a standard wireless charger for your mobile phone
temi V3:
The tray contains a 12V DC power jack and 4 screw holes for add-on attachment.
0.98ft X 0.8ft/ 30cmx25cm
Tray load: 6.6Lb / 3KG (Depends on assembly – consult with support team)
In The Box
1 temi robot
1 Docking station+ Cable
Quick setup guide
1 Docking station+ Cable
Quick setup guide
